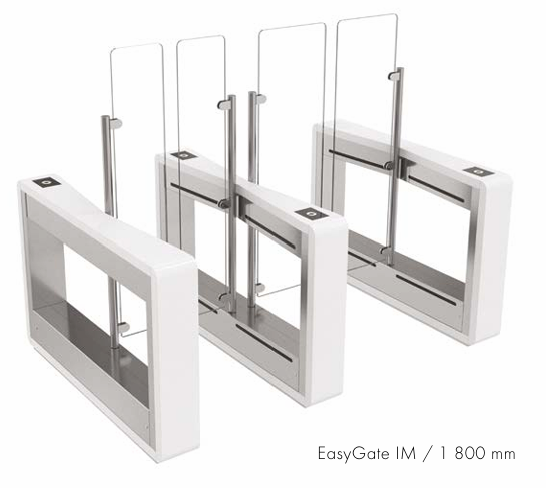

EasyGate IM
Type
Swing technology
1 wing / 2 wings
Square front
Safety & Security Detection
-
36 pairs of IR sensors
-
Safety & Security levels
-
Tailgating / Cross over detection

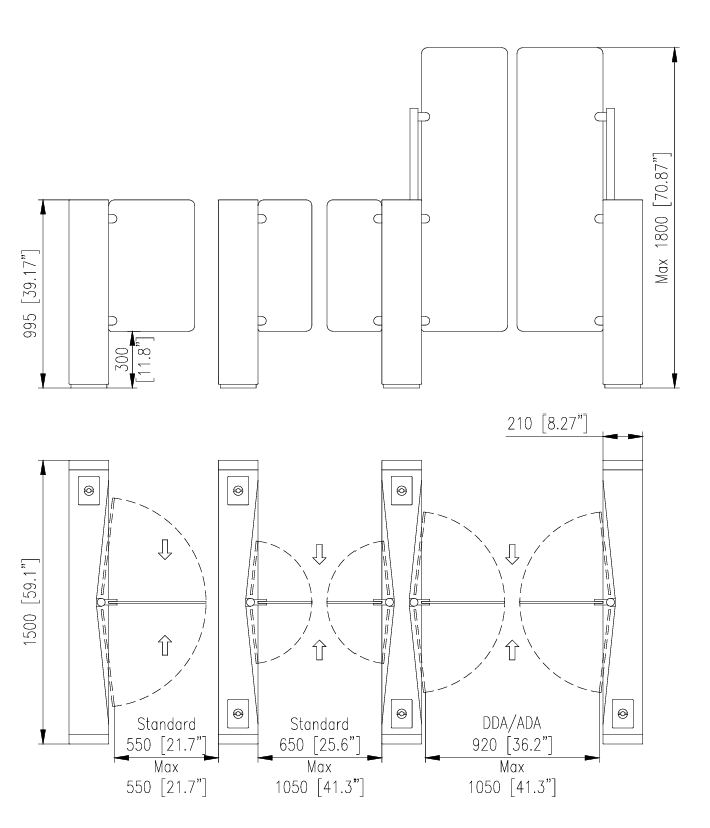

Dimensions
| mm | inches | |
|---|---|---|
| Cabinet height | 995 mm | 39.17” |
| Cabinet length | 1,500 mm | 59.10” |
| Cabinet width | 210 mm | 8.27” |
| Barrier height standard | 990 mm | 38.98” |
| Barrier height max. | 1,800 mm | 70.87” |
| Passage width standard | 650 mm | 25.59” |
| Passage width max. | 1,050 mm | 41.34” |
Special features
Heavy duty wing
Arc layout
Material and Colours
| Inner covers | brushed stainless steel |
| Cladding | corian |
| Barriers | tempered glass barrier panels (10 mm / 0.39”) |
Operating Environment
Indoor
Drive Mechanism
Magnetic Direct Drive motor with external tooth brake
MCBF 20,000,000 cycles
Stand-by Power Consumption
6.1 W
Emergency Mode
Open automatically in the exit direction
Pushthrough feature**
Optional Accessories
RFID reader bracket (flush mounted)
Access Light / Lane Light / Wing Light
WAV player
Hinge capping
Pushthrough feature
RF remote control
EasyTouch / TouchPanel / T-MON SW
SuperCap (emergency power back-up)
Alternative surface finishes / Optional top finishes
Integration of LiftCall / Card collector / BarCode scanner
Ramp LT
